Electric Impact Drill / 550W / TOTAL TG105136

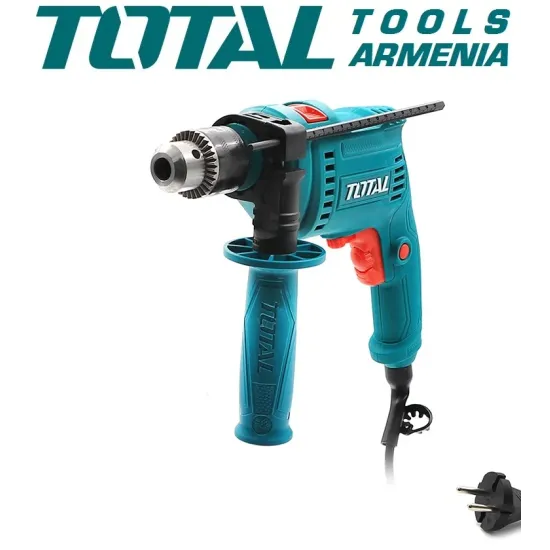

The Impact Electric Drill Total TG105136 is powered by a 220 V network and provides 550 watts of power. The key chuck allows you to reliably clamp the drill with a shank up to 1.5 - 13 mm thick. The rotation speed without load is adjustable in the range of 0–3000 rpm, switching the direction of rotation is carried out by a special switch. Impact speed: 0-43200 / min. Power lock button. On the ergonomic handle is a button to lock the on / off drill.
The TOTAL TG105136 hammer drill is designed for drilling holes in various materials. Thanks to the reverse and shock functions, this model is distinguished by functionality. The two-component handle provides reliable grip for ease of use. The robust metal cartridge provides a long service life. To increase comfort during continuous operation, a trigger lock button is provided.
Spare parts:
Rotor TG105136-SP-15-1
Stator TG105136-SP-16
Switch TG105136-SP-22
Carbon Brushes TG105136-SP-21
Rotor TG105136-SP-15
- Powerful engine for high performance TOTAL;
- Air cooling for reliability;
- Additional handle for easy operation;
- Key cartridge for reliable snap-in;
- Drilling depth limiter for precise work;
- Speed control for universal use
| Technical | |
| Power | 550 W |
| Type | Electric Impact Drill |
| Impact frequency | 43200 bpm |
| The maximum number of revolutions | 3000 rpm |
| Features | Torque settings - variable speed for various drilling. Air cooling. Two-component handle. |
| Modes and Functions | Reverse: 1 speed. Lock-on switch for continuous use. Hammer / Drill Function Change. |
| Engine type | Electric |
| Structure | |
| Work Material (Maximum drilling diameter) | 13 mm (steel) / 30 mm (wood) |
| Type of Patron | Key - for a gear key |
| Size of the patron | 1,5 - 13 mm |
| Weight | 2,2 kg |
| Nutrition | |
| Nutrition | 220-240 V ~ 50/60 Hz |
| Cable length | 2 meters |
| Set | |
| Packing | Cardboard box |
| In the set | Accessories - 1 set of carbon brushes. Key for drill chuck. 1pcs auxiliary handle. 1pcs depth gauge |
